Romex Cable Type NM-B NMC-B Nonmetallic-Sheathed Cord Suppliers

Home / Product / North America / Residential Renovation Series / Building Wire & Cable / Nonmetallic-Sheathed Cord / Romex Cable Type NM-B NMC-B Nonmetallic-Sheathed Cord
  • Romex Cable Type NM-B NMC-B Nonmetallic-Sheathed Cord
  • Romex Cable Type NM-B NMC-B Nonmetallic-Sheathed Cord
  • Romex Cable Type NM-B NMC-B Nonmetallic-Sheathed Cord
  • Romex Cable Type NM-B NMC-B Nonmetallic-Sheathed Cord
Nonmetallic-Sheathed Cord

Romex Cable Type NM-B NMC-B Nonmetallic-Sheathed Cord

Applications
Romex Cables Type NM-B NMC-B containing 2-4 thermoplastic-insulated circuit conductors with a grounds ing conductor, These cables are intended for use by Article 334 and other applicable parts of the National Electrical Code. Type NMC-B cable is for use in drymoist,damp, and corrosive locations, and Type NM cable is for use in normally dry locations. Both types carry the suffix letter -B to designate the use of conductor with 90. insulation.
Specifications
Type NM-B NMC-B cable according to UL Standard 83, UL Standard 719,Only UL CertificationType NMD90 NMWU cable according to UL Standard 83, CSA Standard C22.2 NO.48 for UL and Canada
Construction

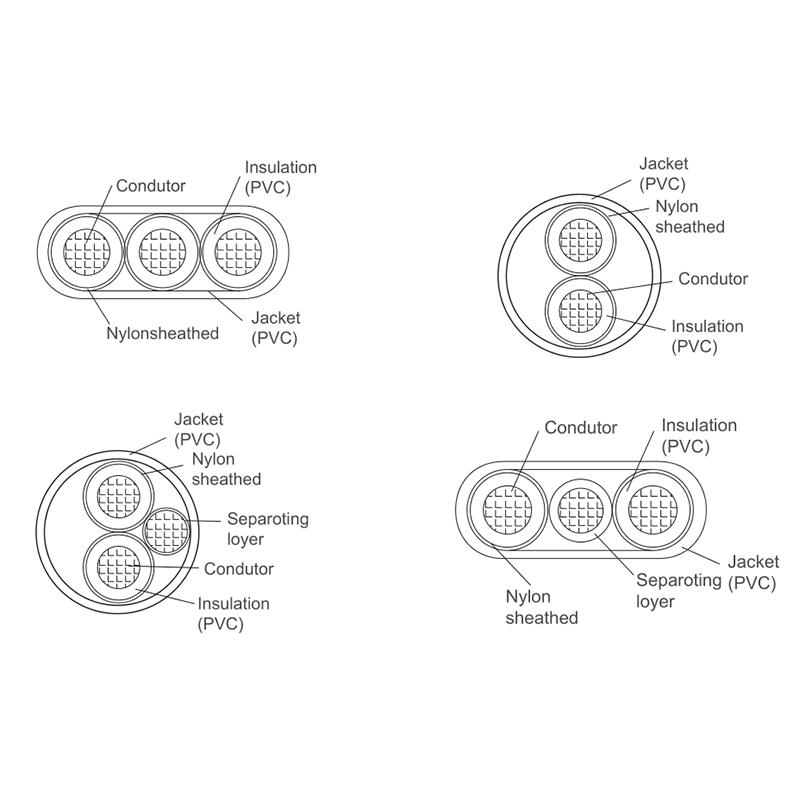

Romex Cable is manufactured as 2,3, or 4-conductor cable , with a bare grounds wireConductors are Copper or aluminum or copper clad aluminum. Conductor insulation is 90.-rated polyvinyl chloride(PVC), nylon jacket.The Cable jacket is color-coded for quick size identification; White--14AWG.Yellow---12AWG;Orange----10AWG; and Black-..--8AWGAWG,4AWGand 2AWG
Rated Voltage: 600V
Packing: Coil- Plastic wrap,Reel
PREV：No previous article
NEXT：No next article
  • Technical Characteristics of NM-B Cable
    Conductor Approx . Over Dimension (mm) Approx.Net Weight Per, 1000' (lbs)
    Size (AWG) No. Strands Conductor Diameter (mm) Insulation Thickness (mm) Nylon Jacket Min thickness at any point (mm) Size AWG No.Strands
    14 2 1/1.63 0.38 0.1 14 1/1.63 9.1x4.2 57
    12 2 1/2.05 0.38 0.1 12 1/2.05 10.4x4.5 82
    10 2 19/0.574 0.51 0.1 10 1/2.59 12.5x5.3 124
    8 2 19/0.72 0.76 0.13 10 1/2.59 15.5x6.8 186
    6 2 19/0.914 0.76 0.13 10 1/2.59 17.4x7.7 255
    14 3 1/1.63 0.38 0.1 14 1/1.63 7.8 74
    12 3 1/2.05 0.38 0.1 12 1/2.05 8.8 107
    10 3 19/0.574 0.51 0.1 10 1/2.59 10.7 164
    8 3 19/0.72 0.76 0.13 10 1/2.59 14.4 253
    6 3 19/0.914 0.76 0.13 10 1/2.59 16.5 357
    4 3 7/1.96 1.02 0.15 8 1/3.27 20.6 560
    2 3 19/1.52 1.02 0.15 8 1/3.27 24.2 816
