What Is a Mechanical Timer Switch and How Does It Work?

A mechanical timer switch is a device that uses physical components, such as springs, electric motors, and gears, to control the timing of electrical appliances. Like its digital counterpart, a mechanical timer can turn lights and appliances on and off at set times. There are two primary types of mechanical timer switches: plug-in and wall-mounted.

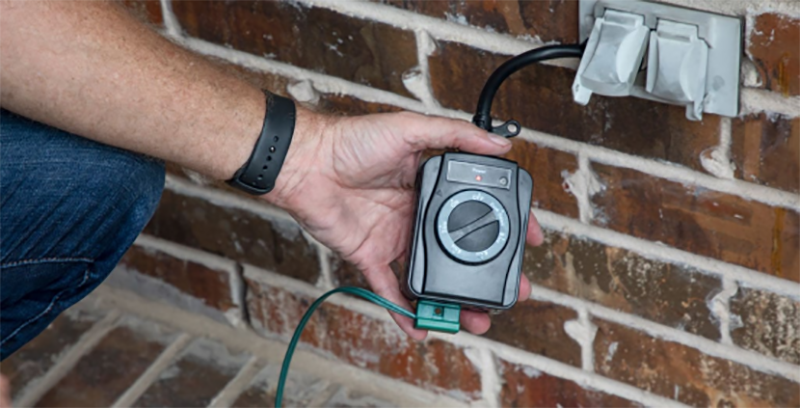

Plug-In Mechanical Timer

A plug-in mechanical timer switch is designed to be used directly with power outlets. It features a simple design, typically a white plastic body with a knob on the front. To set the timer, you turn the knob clockwise until you reach the desired time.This type of timer is ideal for those who don't want to install permanent fixtures or for those seeking an affordable option. It's also portable, so you can easily move it between appliances, making it versatile for various uses.

Mechanical Wall Timer Switch

The mechanical wall timer switch is installed into your home's electrical system and offers more permanent integration than the plug-in model. It connects to the existing wiring system, providing greater control and flexibility for circuits.

To install, you need to connect the timer to the hot wire (typically black), the neutral wire (usually white or gray), and the ground wire (green or bare copper). Once installed, the timer is set by rotating the knob to the desired time.

How Does a Mechanical Timer Switch Work?

Mechanical Timer Mechanism

A mechanical timer consists of two main components: the actuator (setting knob) and the drive. The actuator is the external knob that lets you set the timer for turning the device on or off.

Inside the timer, the drive typically contains gears powered by an internal spring or motor. When the spring winds, it causes the gears to move in a circular motion, which in turn moves the timing components and controls when the switch activates.

Functioning of a Mechanical Timer

Here’s how the timer operates: once you set the desired time, an internal mechanism tracks the passage of time. After the set interval (either fixed or adjustable), the mechanism triggers the switch to turn the appliance on or off as programmed.
