Cable Type UF-B
Applications
UF-B cable is generally used as feeder to outside post lamps, pumps, and other loads or apparatus fed from a distribution point in an existing building as specified NEC. UF-B cable may be used underground, including direct burial. Multiple conductor UF-B cable may be used for interior branch circuit wiring in residential or agricultural buildings at conductor temperatures not to exceed 90℃.
Type UF UF-B cable 600V, according to UL Standard 83, UL Standard 493

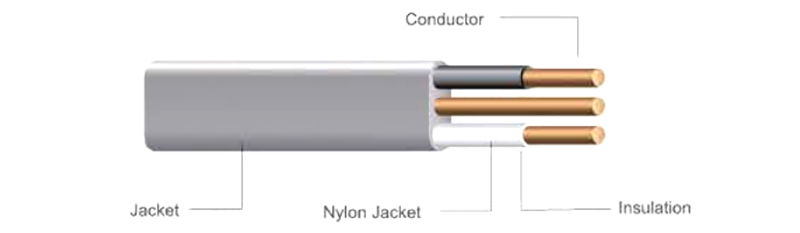

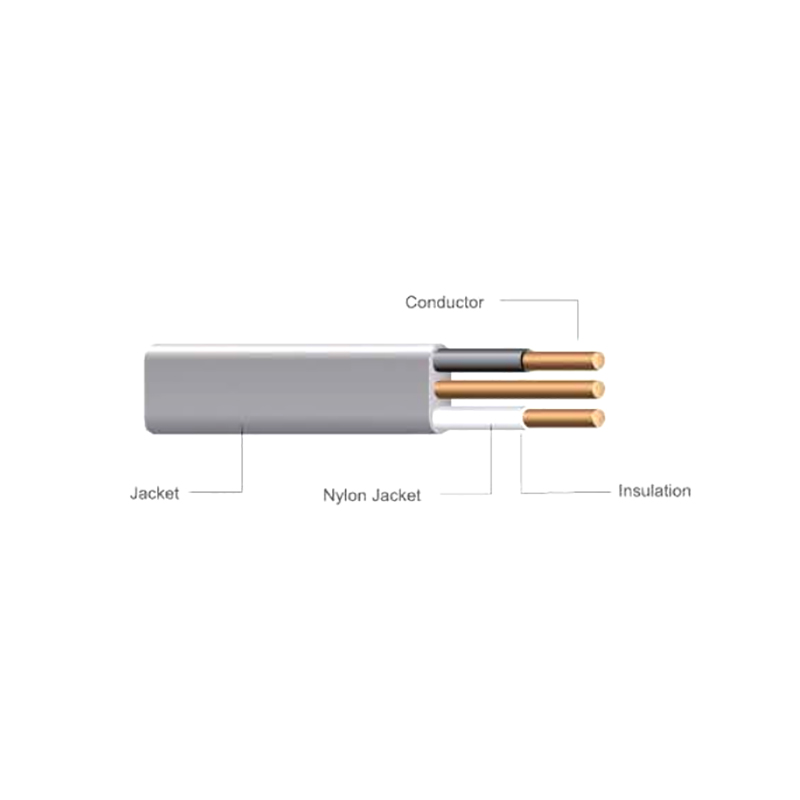

Construction
UF-B Cable is manufactured as 2 or 3 conductor cable, with or without a ground wire.
Copper conductors are Copper solid or compressed stranded. Conductor insulation is 90'C -rated polyvinyl chloride(PVC), nylon jacketed, and PVC jacketed with sunlight moisture and fungus resistant gray PVC.
Packing: Coil- Plastic wrap, Reel
Technical Characteristics of UFB Cable
| Conductor | Approx. | Approx.Net Weight Per, 1000' (lbs) | ||||||
| Size (AWG) | No. Strands | Conductor Diameter (mm) | Insulation Thickness (mm) | Nylon Jacket Min thickness at any point (mm) | Size AWG | No. Strands | Over (mm) | |
| 14 | 2 | 1/1.63 | 0.38 | 0.1 | 14 | 1/1.63 | 10.7x4.3 | 70 |
| 12 | 2 | 1/2.05 | 0.38 | 0.1 | 12 | 1/2.05 | 11.8x4.7 | 95 |
| 10 | 2 | 19/0.574 | 0.51 | 0.1 | 10 | 1/2.59 | 13.2x5.5 | 138 |
| 8 | 2 | 19/0.72 | 0.76 | 0.13 | 10 | 1/2.59 | 17.2x7.7 | 222 |
| 6 | 2 | 19/0.914 | 0.76 | 0.13 | 10 | 1/2.59 | 19.5x8.6 | 303 |
| 14 | 3 | 1/1.63 | 0.38 | 0.1 | 14 | 1/1.63 | 14.8X4.27 |
95 |
| 12 | 3 | 1/2.05 | 0.38 | 0.1 | 12 | 1/2.05 | 15.9X4.65 | 129 |
| 10 | 3 | 19/0.574 | 0.51 | 0.1 | 10 | 1/2.59 | 18.5X5.5 | 191 |
| 8 | 3 | 19/0.72 | 0.76 | 0.13 | 10 | 1/2.59 | 26.8X8.1 | 344 |
| 6 | 3 | 19/0.914 | 0.76 | 0.13 | 10 | 1/2.59 | 31X9.2 | 478 |
Well Electric occupies 100,000 square meters, with 80 automated production lines and over 350 injection molding machines, 1,500 machines, and 250 testing equipment sets. Our main products encompass PVC and rubber sheathed power cords, extension cords, cable reels, power adapters, work lights, light strings, EV chargers, and related items. Over nearly 30 years, we've expanded globally, serving North America, Europe, Australia, and East Asia, providing ODM solutions to major retailers including Home Depot, Costco, Wal-Mart, and HFT.
Whether you need standard or customized power solutions, Well Electric combines technical expertise, cost efficiency, and stringent safety standards to power your success. Partner with us for cables that deliver durability, compliance, and superior performance.
